9V 6LR61-B Business Alkaline Battery

The 9V 6LR61-B Business Alkaline Battery is a -rate energy supply designed for various digital devices. This battery gives a reliable and long-lasting overall performance, making it ideal for business and professional use. It is constructed with advanced generation and sturdy creation to make sure regular electricity transport. Whether used in portable radios, scientific equipment, or security structures, the 9V 6LR61-B Business Alkaline Battery offers a dependable electricity supply. It is the suitable preference for companies and specialists searching for a dependable and green energy solution for their gadgets.
+86-13861108887 / +86-13338792022 [email protected] [email protected]
contact us
PREV: 9V 6LR61-1B Hanging Card Alkaline Battery NEXT:AA LR6-4B Business Alkaline Battery
  • Parameter
  • Detailed Description
  • Get A Free Quote

Model:

6LR61-B

Standard:

9V

Product Size:

26.5（D）*48.5（H）mm

Weight:

45g

Package:

Shrink/hang card

Certification:

CE, ROHS, SGS, REACH, UL, KC, UN38.3, MSDS

1. Scope
This specification provides the technical requirements of an alkaline manganese dioxide battery(6LR61). The requirements and size should satisfy or above GB/T8897.1 and GB /T8897.2 if there are no other detail requirements.
1.1Reference Standards
GB/T8897.1 (IEC60086-1,MOD)（Primary Battery Part 1:General）
GB/T8897.2 (IEC60086-2,MOD)（Primary Battery Part2:Size and Technical requirements）
GB8897.5 (IEC 60086-5,MOD)（Primary Battery Part5：Safety of batteries with aqueous electrolyte）
1.2Environmental Protection Standard
The battery meets the standard of EU battery directive 2006/66/EC.

2. Chemical system, Voltage and Designation
Chemical system：Zn-MnO2(KOH),without Hg&Cr
Nominal Voltage:9.0V
Designation: IEC：6LR61     Daily-max:6LR61

3. Battery Size
Battery meets the picture standard

3.1 Inspection Tool
Using vernier calipers which precision is up 0.02mm. to avoid short-circuit, should paste one insulation material on one end of the vernier calipers.
3.2 Acceptance Method
Using GB2828.1-2003 sampling program,special sampling S-3,acceptance quality limitation: AQL=1.0

4. Weight and discharging capacity
Battery weight about:42g
Discharging capacity:500mAh(Loading180Ω,24h/day,20±2℃ RH60±15%,End-point   Voltage4.8V)

5. Open circuit voltage

Project

Open circuit Voltage（V）

Sampling Voltage

In 2 months
New battery

9.48～9.9

GB2828.1-2003 One Sampling, special sampling S-4, AQL=1.0

12 months storage at room temperature

9.36～9.9


6. Discharging Ability

Discharging Temp：20±2℃

Condition

GB/T8897.2-2008
Requirements

Shortest Average Discharging Time

Load

Discharging Way

End-point Voltage



2 months new battery

12 months storage battery

620Ω

2h/d

5.4 V

33h

40h

36h

270Ω

1h/d

5.4 V

12h

20h

18h

180Ω

24h/d

4.8 V

/

800min

720min
Accordance of the shortest discharging time
   1）Testing 9 batteries of each discharging way；
   2）The result of the average discharging time from each discharging standard     shall be equal to or more than the average time requirement; no more than one battery has a service output less than 80% of the specified requirement；
   3）The result of the average discharging time from each discharging standard shall be equal to or more than the average time requirement, if one battery has a service output less than 80% of the specified requirement then take another 9 pieces to test again. This lot of batteries are qualified if the result meets the NO.2 provision. If not qualified then will not test again.

7. Anti-leakage ability

Condition

Requirements

Qualified
Standard

Environmental conditions

Load Resistance (Ω)

Discharge mode

Termination voltage (V)

Temperature of 20±2 ℃, 60±15% RH

620

2h/d

3.6

No leakage by visual inspection

N=9
Ac=0
Re=1

270

1h/d

180

24h/d


8. Safety Requirements

Project

Condition

Requirements

Qualified Standard

External Short-circuit

Using wire to connect positive and negative poles in 20±2℃ for 24h.

No Explosion

N=5
Ac=0
Re=1

9. Signs
The following signs are on the battery body：
1. Model：6LR61
2. Manufacturer and brand: Daily-max
3. Battery Poles：“+”and“-”
4. Expiry date or manufacturing date
5. Warnings.

10. Cautions for using
1. This battery can’t be charged, leakage and explosion may happen when charging.
2. Make sure the battery is in the correct position as + and -.
3. Short-circuit, heating, disposing of into fire, or disassembling of battery is prohibited.
4. The battery can not be forced discharged, which s to excess gassing and may result in bulging, leakage, and de-crimping of the cap.
5. New batteries and used ones can not be used at the same time. It is recommended to use the same brand when replacing batteries.
6. The battery should be taken out from the device which will not be used for a long time.
7. Exhausted battery should be taken out from the device.
8. Welding batteries are prohibited or it will cause damage.
9. The batteries should be kept from children, if swallowed, contact a doctor immediately.

11. Normal Package
Each 10 pieces in one inner box,20 boxes in one carton.

12. Storage and Expiry
1. Batteries should be put in cool, dry, and air-flowing places
2. The batteries should not be exposed in sunshine or rainy places.
3. Do not mix the batteries without labels
4.Storing in 20℃±2℃, 60±15%RH condition. The storage time is 3 years.

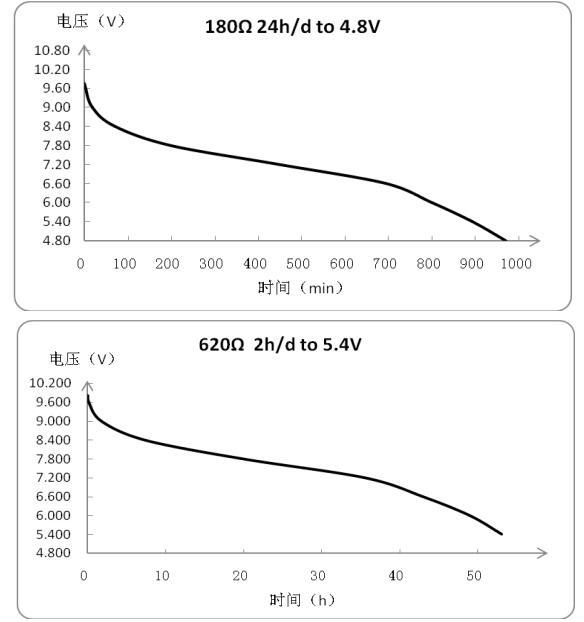

13. Nominal discharging curve
Discharging condition：20℃±2℃，RH60±15%
With the progress of product technology, and technical parameters, the specification will be updated too, pls contact Anyida for the latest specification.
