C LR14-2B Business Alkaline Battery

The C LR14-2B Business Alkaline Battery is a dependable and green energy solution tailor-made to meet the needs of experts. Designed for high-performance gadgets, this battery offers long-lasting and dependable energy. Its technology and strong creation make sure a steady and efficient electricity supply, making it for demanding packages. Whether used in commercial device, expert tools, or other business-grade devices, the C LR14-2B Business Alkaline Battery gives awesome overall performance and reliability, giving corporations the self assurance they need to strength their operations effectively. Trust this battery to provide electricity while you need it the .
+86-13861108887 / +86-13338792022 [email protected] [email protected]
contact us
PREV: D LR20-2B Business Alkaline Battery NEXT:LR03-2B Hanging Card Alkaline Battery
  • Parameter
  • Detailed Description
  • Get A Free Quote

Model:

LR14-2B

Standard:

1.5V

Product Size:

26.2（D）*50（H）mm

Weight:

65g

Package:

Shrink/hang card

Certification:

CE, ROHS, SGS, REACH, UL, KC, UN38.3, MSDS

1. Scope
This specification provides the technical requirements of an alkaline manganese dioxide battery (LR14). The requirements and size should satisfy or above GB/T8897.1 and GB /T8897.2 if there are no other detail requirements.
1.1Reference Standards
GB/T8897.1 (IEC60086-1,MOD)（Primary Battery Part 1:General）
GB/T8897.2 (IEC60086-2,MOD)（Primary Battery Part2:Size and Technical requirements）
GB8897.5 (IEC 60086-5,MOD)（Primary Battery Part5：Safety of batteries with aqueous electrolyte）
1.2Environmental Protection Standard
The battery meets the standard of EU battery directives 2006/66/EC.

2. Chemical system, Voltage and Designation
Chemical system：Zn-MnO2(KOH),without Hg &Cr
Nominal Voltage: 1.5V
Designation : IEC： LR14     ANSI: C     JIS: AM-2     Others: E93

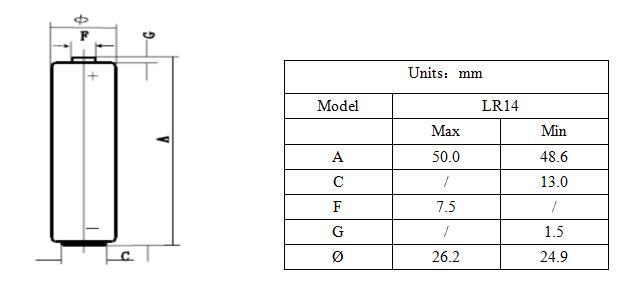

3. Battery Size
Battery meets the picture standard
3.1 Inspection Tool
Using vernier calipers which precision is up 0.02mm. to avoid short-circuit, should paste one insulation material on one end of the vernier calipers.
3.2 Acceptance Method
Using GB2828.1-2003 sampling program, special sampling S-3,acceptance quality limitation: AQL=1.0

4. Weight and discharging capacity
Battery weight about:65g
Discharging capacity:5000mAh(Loading3.9Ω，24h/day,20±2℃ RH60±15%,End-point   Voltage0.9V)

5. Open circuit voltage, loading voltage and short-circuit current

Project

Open circuit Voltage（V）

Loading Voltage（V）

Short-circuit Voltage（A）

Sampling Voltage

In 2 months
New battery

1.60

1.45

8.00

GB2828.1-2003 One Sampling, special sampling S-4, AQL=1.0

12 months storage at room temperature

1.56

1.40

6.00

Inspection Condition

Loading 3.9Ω, loading time 0.3s，temp:20±2℃


6. Discharging Ability

Discharging Temp：20±2℃

Condition

GB/T8897.2-2008
Requirements

Shortest Average Discharging Time

Load

Discharging Way

End-point Voltage



2 months new battery

12 months storage battery

3.9Ω

4min/h,8h/d

0.9 V

770min

900min

810min

3.9Ω

1h/d

0.8 V

12h

17h

15.5h

6.8Ω

1h/d

0.9 V

23h

30h

27h

20Ω

4h/d

0.9 V

77h

90h

81h

3.9Ω

24h/d

0.9 V

/

16h

14.5h
Accordance of the shortest discharging time
   1）Testing 9 batteries of each discharging way；
   2）The result of the average discharging time from each discharging standard     shall be equal to or more than the average time requirement; no     more than one battery has a service output less than 80% of the specified     requirement；
   3）The result of the average discharging time from each discharging standard shall be equal to or more than the average time requirement, if one battery has a service output less than 80% of the specified requirement then take another 9 pieces to test again. This lot of batteries are qualified if the result meets the NO.2 provision. If not qualified then will not test again.

7. Anti-leakage ability

Project

Condition

Requirements

Qualified
Standard

Over Discharging

Continuous discharging 48h in 20±2℃, huminity 60±15%, load 10Ω condition.

No leakage by visual inspection

N=9
Ac=0
Re=1

High-temp storage

Storing in 60±2℃, relative humidity 90% condition for 20 days.



N=30
Ac=1
Re=2


8. Safety Requirements

Project

Condition

Requirements

Qualified Standard

External Short-circuit

Using wire to connect positive and negative poles in 20±2℃ for 24h.

No Explosion

N=5
Ac=0
Re=1

Improper Equipment

4 batteries in series connection, one of them is in reverse connection.

Leakage happened on the reversed battery or the shell temp reduced to room temp

N=4×5
Ac=0
Re=1

9. Signs
The following signs are on the battery body：
1. Model：LR14/C
2. Manufacturer and brand: Daily-max
3.Battery Poles：“+”and“-”
4. Expiry date or manufacturing date
5. Warnings.

10. Cautions for using
1. This battery can’t be charged, leakage and explosion may happen when charging.
2. Make sure the battery is in the correct position as + and -.
3. Short-circuit, heating, disposing of into fire, or disassembling of battery is prohibited.
4. The battery can not be forced to discharge, which s to excess gassing and may result in bulging, leakage, and de-crimping of the cap.
5. New batteries and used ones can not be used at the same time. It is recommended to use the same brand when replacing batteries.
6. The battery should be taken out from the device which will not be used for a long time.
7. Exhausted battery should be taken out from the device.
8. Welding batteries are prohibited or it will cause damage.
9. The batteries should be kept from children, if swallowed, contact a doctor immediately.

11. Normal Package
Each 12 pieces in one inner box,20 boxes in one carton.

12. Storage and Expiry
1. Batteries should be put in cool, dry, and air-flowing places.
2. The batteries should not be exposed in sunshine or rainy places.
3. Do not mix the batteries without labels
4.Storing in 20℃±2℃, 60±15%RH condition. The storage time is 3 years.

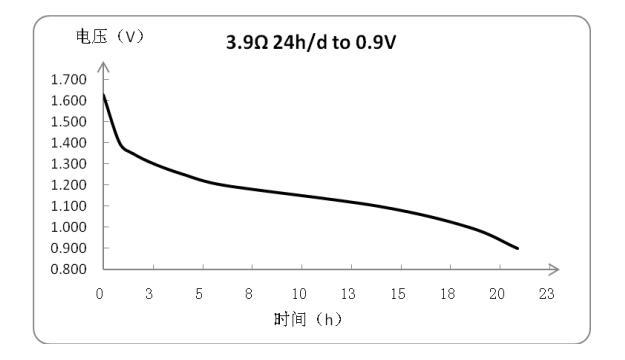

13. Nominal discharging curve
Discharging condition：20℃±2℃，RH60±15%
With the progress of product technology, and technical parameters, the specification will be updated too, please contact Anyida for the latest specifications.
