LR6-4B Hanging Card Alkaline Battery

The LR6-4B hanging card Alkaline Battery is a versatile and reliable electricity source, packaged in a convenient striking card layout for easy storage and accessibility. These batteries are specially designed for ordinary use in a huge range of devices, turning in lengthy-lasting and reliable performance. With alkaline technology, they provide a constant and dependable electricity deliver, making them ideal for high-drain devices which include flashlights, cameras, toys, and extra. The LR6-4B putting card Alkaline Battery guarantees that your devices keep going for walks easily and efficiently, presenting you with the strength you want whilst you want it.
+86-13861108887 / +86-13338792022 [email protected] [email protected]
contact us
PREV: LR6-2B Hanging Card Alkaline Battery NEXT:No next article
  • Parameter
  • Detailed Description
  • Get A Free Quote

Model:

 LR6-4B

Standard:

1.5V

Product Size:

14.5（D）*50.5（H）mm

Weight:

22g

Package:

Shrink/hang card

Certification:

CE, ROHS, SGS, REACH, UL, KC, UN38.3, MSDS

1. Scope
This specification provides the technical requirements of an alkaline manganese dioxide battery(LR6). The requirements and size should satisfy or above GB/T8897.1 and GB /T8897.2 if there is not any other detailed requirements.
1.1Reference Standards
GB/T8897.1 (IEC60086-1,MOD)（Primary Battery Part 1:General）
GB/T8897.2 (IEC60086-2,MOD)（Primary Battery Part2:Size and Technical requirements）
GB8897.5 (IEC 60086-5,IDT)（Primary Battery Part5：Safety of batteries with aqueous electrolyte）
1.2Environmental Protection Standard
The battery meets the standard of EU battery directives 2006/66/EC.

2. Chemical system, Voltage and Designation
Chemical system：Zn-MnO2(KOH),without Hg & Cr
Nominal Voltage: 1.5V
Designation : IEC： LR6     ANSI: AA     JIS: AM-3     Others:24A, E91
Operating Temp Range Spec of -20℃ to +60℃

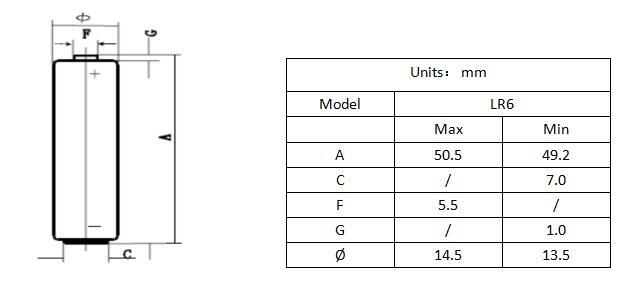

3. Battery Size
Battery meets the picture standard
3.1 Inspection Tool
Using vernier calipers which precision is up 0.02mm. to avoid short-circuit, paste on one insulation material on one end of the vernier calipers.
3.2 Acceptance Method
Using GB2828.1-2003 sampling program, special sampling S-3, acceptance quality limitation: AQL=1.0

4. Weight and discharging capacity
Battery weight about:22.0g
Discharging capacity:2200mAh(Loading43Ω，4h/day,20±2℃ RH60±15%,End-point   Voltage0.9V)

5. Open circuit voltage, loading voltage and short-circuit current

Project

Open circuit Voltage（V）

Loading Voltage（V）

Short-circuit Voltage（A）

Sampling Voltage

In 2 months
New battery

1.60

1.45

7.00

GB2828.1-2003 One Sampling, special sampling S-4, AQL=1.0

12 months storage at room temperature

1.56

1.40

6.00

Inspection Condition

Loading 3.9Ω, loading time 0.3s，temp:20±2℃


6. Discharging Ability

Discharging Temp：20±2℃

Condition

GB/T8897.2-2008
Requirements

Shortest Average Discharging Time

Load

Discharging Way

End-point Voltage



2 months new battery

12 months storage battery

43Ω

4h/d

0.9 V

65h

85h

78h

3.9Ω

1h/d

0.8 V

4.5h

6.5h

6h

24Ω

15s/min,8h/d

1.0 V

31h

40h

36h

3.9Ω

24h/d

0.9 V

/

340min

310min

10Ω

24h/d

0.9 V

/

17.5h

16h
 Accordance of the shortest discharging time
   1）Testing 9 batteries of each discharging way；
   2）The result of the average discharging time from each discharging standard     shall be equal to or more than the average time requirement; no     more than one battery has a service output less than 80% of the specified     requirement；
   3）The result of the average discharging time from each discharging standard shall be equal to or more than the average time requirement, if one battery has a service output less than 80% of the specified requirement then take another 9 pieces to test again. This lot of batteries are qualified if the result meets the NO.2 provision. If not qualified then will not test again.

7. Anti-leakage ability

Project

Condition

Requirements

Qualified
Standard

Over Discharging

Continuous discharging 48h in 20±2℃, humidity 60±15%, load 10Ω condition.

No leakage by visual inspection

N=9
Ac=0
Re=1

High-temp storage

Storing in 60±2℃, relative humidity 90% condition for 20 days.



N=30
Ac=1
Re=2


8. Safety Requirements

Project

Condition

Requirements

Qualified Standard

External Short-circuit

Using wire to connect positive and negative poles in 20±2℃ for 24h.

No Explosion

N=5
Ac=0
Re=1

Improper Equipment

4 batteries in series connection, one of them is in reverse connection.

Leakage happened on the reversed battery or the shell temp reduced to room temp

N=4×5
Ac=0
Re=1

9. Signs
The following signs are on the battery body：
1. Model： LR6/AA
2. Manufacturer and brand： Daily-max
3.Battery Poles：“+”and“-”
4. Expiry date or manufacturing date
5. Warnings.

10. Cautions for using
1. This battery can’t be charged, leakage and explosion may happen when charging.
2. Make sure the battery is in the correct position as + and -.
3. Short-circuit, heating, disposing of into fire, or disassembling of battery is prohibited.
4. The battery can not be forced to discharge, which s to excess gassing and may result in bulging, leakage, and de-crimping of the cap.
5. New batteries and used ones can not be used at the same time. It is recommended to use the same brand when replacing batteries.
6. The battery should be taken out from the device which will not be used for a long time.
7. Exhausted battery should be taken out from the device.
8. Welding batteries are prohibited or it will cause damage.
9. The batteries should be kept from children, if swallowed, contact a doctor immediately.

11. Normal Package
Each 2,3 or 4 batteries in a shrink package,60 pieces in one inner box, and 12 boxes in one carton.

12. Storage and Expiry
1. Batteries should be put in cool, dry, and air-flowing places.
2. The batteries should not be exposed in sunshine or rainy places.
3. Do not mix the batteries without labels
4.Storing in 20℃±2℃, 60%±15%RH condition. The storage time is 3 years.

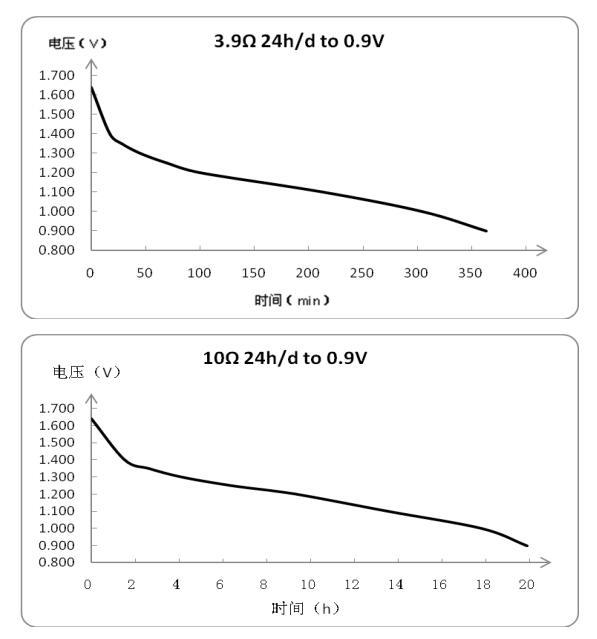

13. Nominal discharging curve
Discharging condition：20℃±2℃，RH60±15%
With the progress of product technology, and technical parameters, the specification will be updated too, please contact to stand for the latest specifications.
